Ford Mustang® GT4 – Gen 7

Bred to Race.

Overview

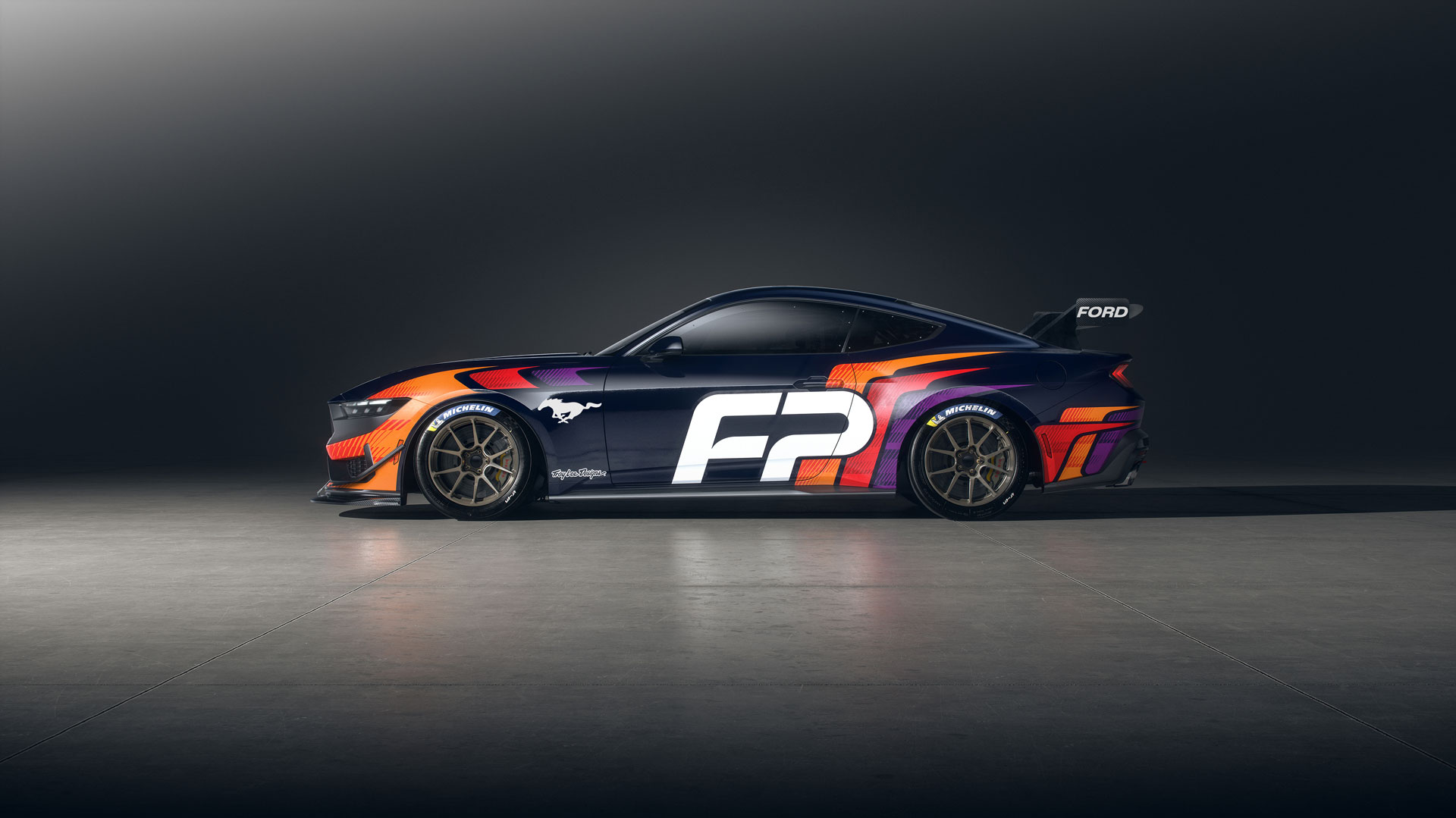

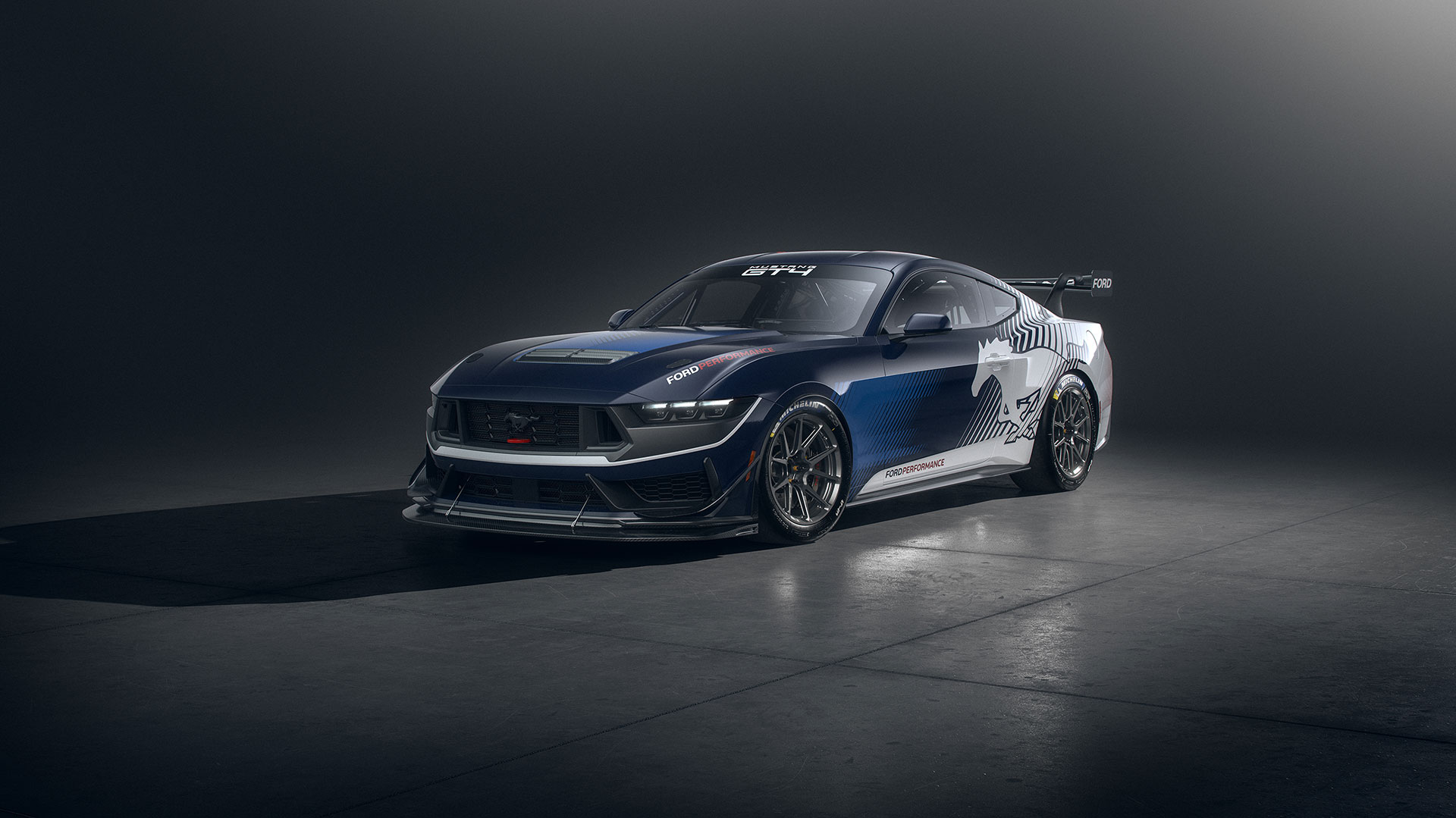

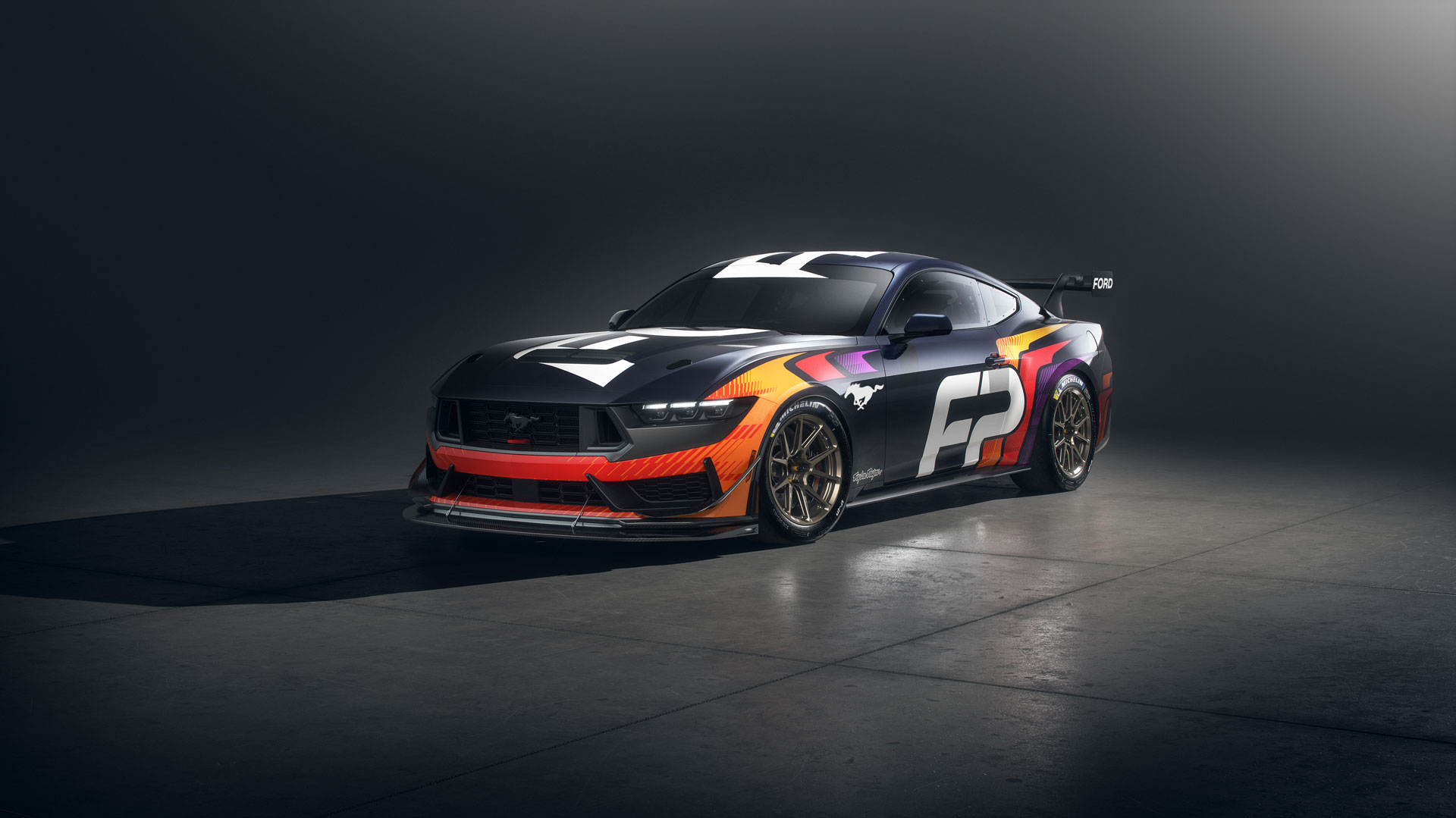

Ford Mustang GT4 Motorsport

The new-for-2024 seventh generation Ford Mustang GT4 has been built by Multimatic Motorsports and Ford Performance to be ready to race straight out of the box; affordable, durable and simple to maintain by the customer teams that it was created for.

Mustang GT4 is eligible to race in SRO-sanctioned GT4 competition around the globe.

The first race for the seventh generation Mustang GT4 was the opening round of the IMSA VP Racing SportsCar Challenge season at Daytona in January 2024. Customer team KohR Motorsports and driver Luca Mars took the Mustang straight to Victory Lane, then followed up their win with a second win in Round 2 the next day!

Ford Mustang GT4 Technical Specification

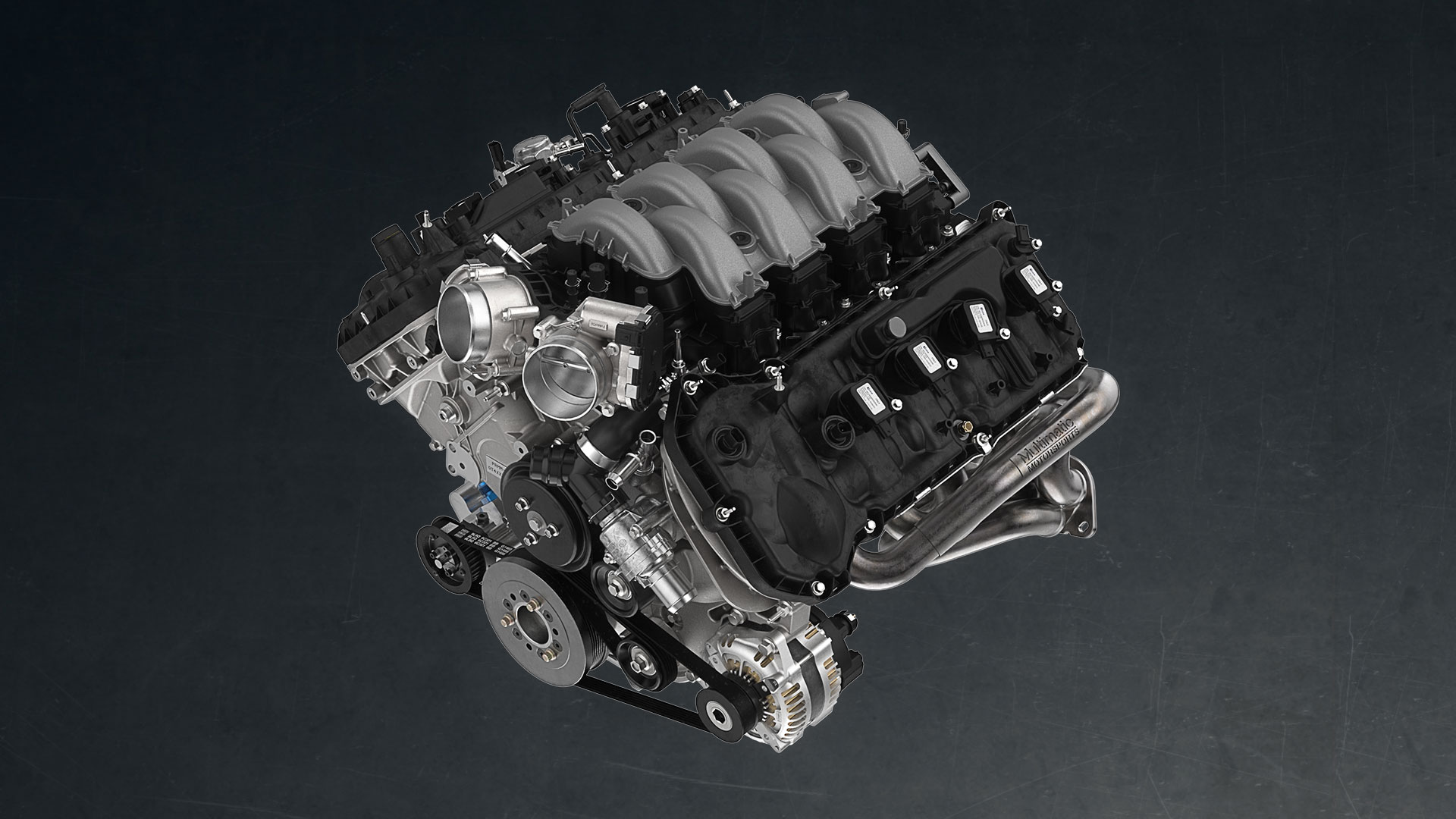

POWERTRAIN

GT4 engine
5.0L naturally aspirated Coyote V8 engine
Bosch Motorsport MS6.3 ECU
Dry sump oiling system
Twin-plate Tilton Racing clutch
Six speed Holinger racing gearbox with pneumatic shift

POWERTRAIN

GT4 engine
5.0L naturally aspirated Coyote V8 engine
Bosch Motorsport MS6.3 ECU
Dry sump oiling system
Twin-plate Tilton Racing clutch
Six speed Holinger racing gearbox with pneumatic shift

SUSPENSION

GT4 chassis
Multimatic two-way adjustable DSSV dampers
Unique rear lower control arm configured for coil-over springs
Blade adjustable anti-roll bars, front and rear
Bosch Motorsport M5 ABS
Brembo brake discs and calipers
Alcon sliding pedal box
Forgeline 18” x 11” aluminium wheels
Slick racing tyres (brand dependant on series)

EXTERIOR

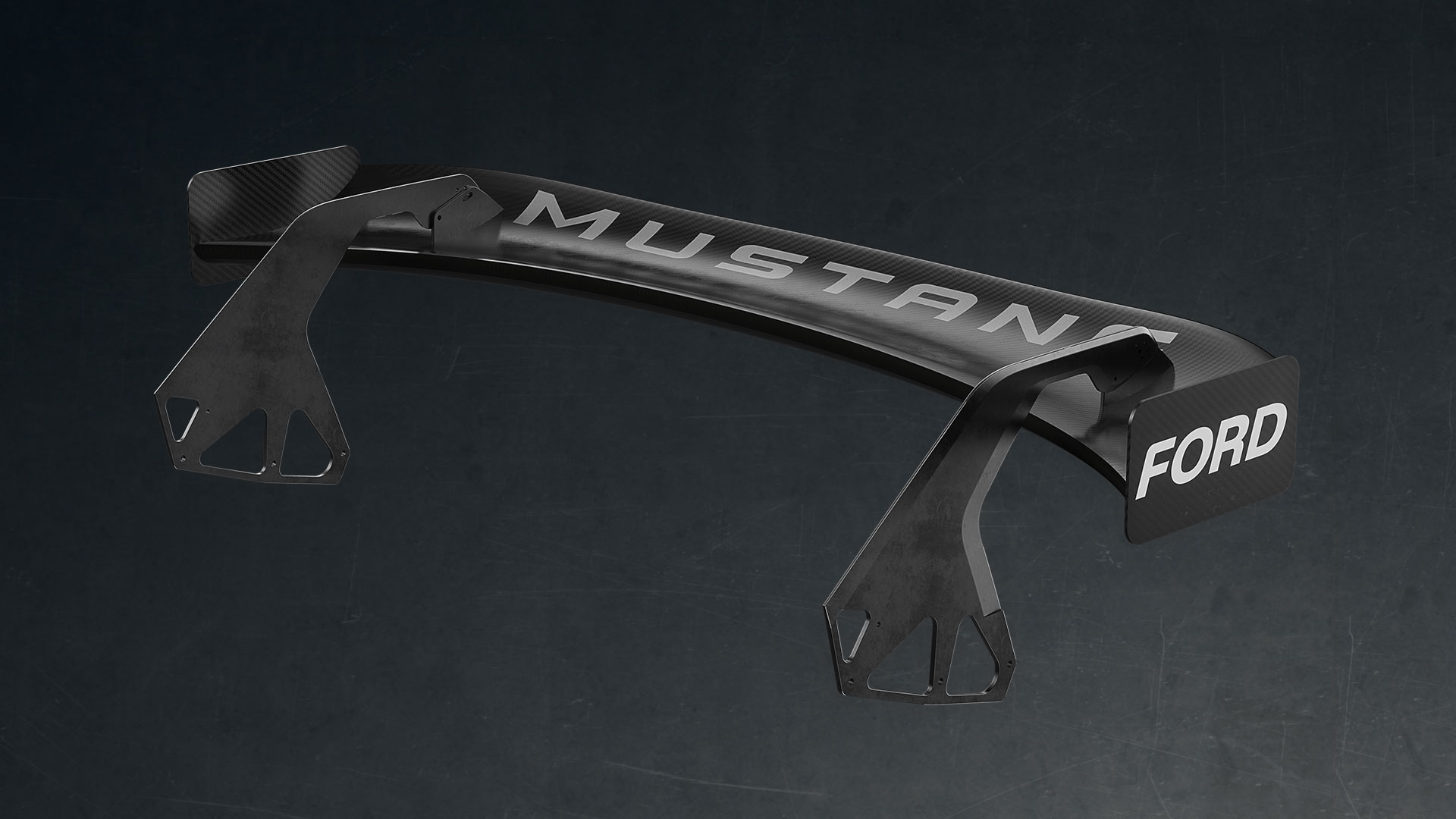

GT4 wing
Highly developed aero package maximised within GT4 rules
  • Natural fibre composite rear wing (newly developed)
  • Natural fibre composite front splitter
  • Natural fibre composite front dive planes
Natural fibre composite hood with maximised louver size
Natural fibre composite roof
Natural fibre composite doors
Natural fibre composite rear deck lid
Lexan front windscreen, Lexan side and rear windows

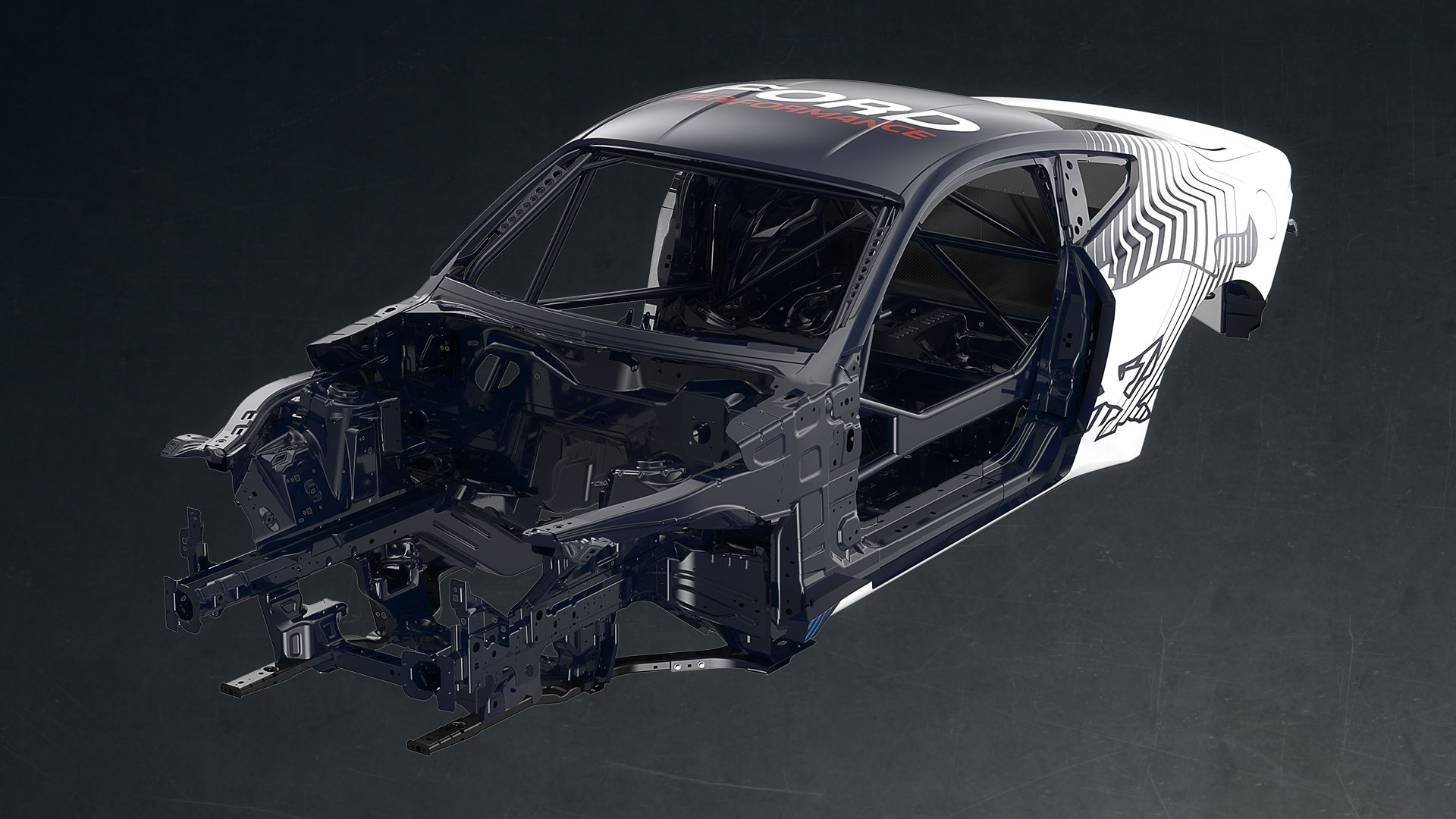

CHASSIS

GT4 chassis
All new, fully-integrated, FIA-compliant roll cage
Recaro FIA compliant racing seat
MoTec C187 dash logger
Motec PDM15 power distribution
Bespoke GT4 wiring looms
