Mazda RT24-P

IMSA WeatherTech SportsCar campaign 2017-2021

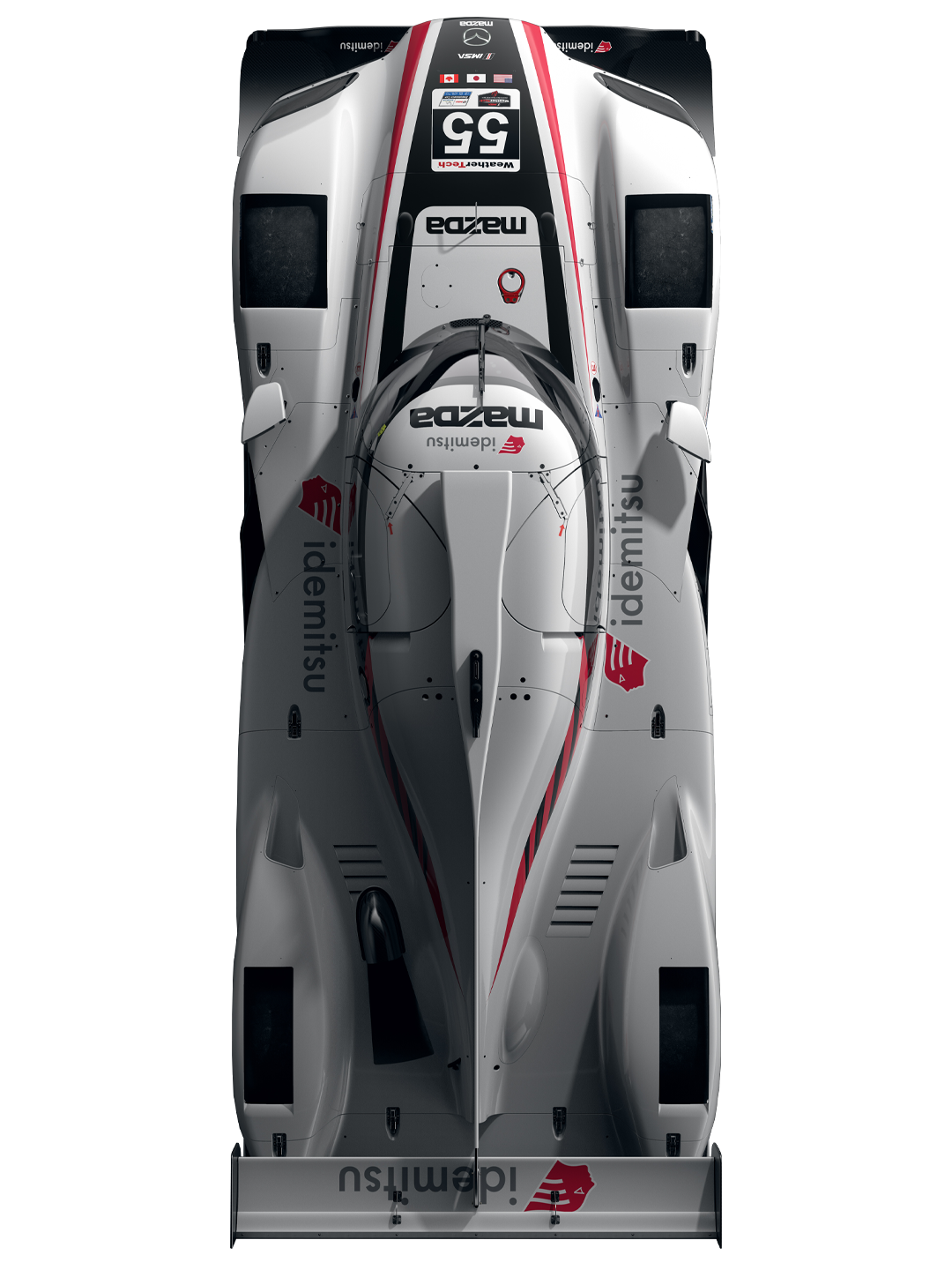

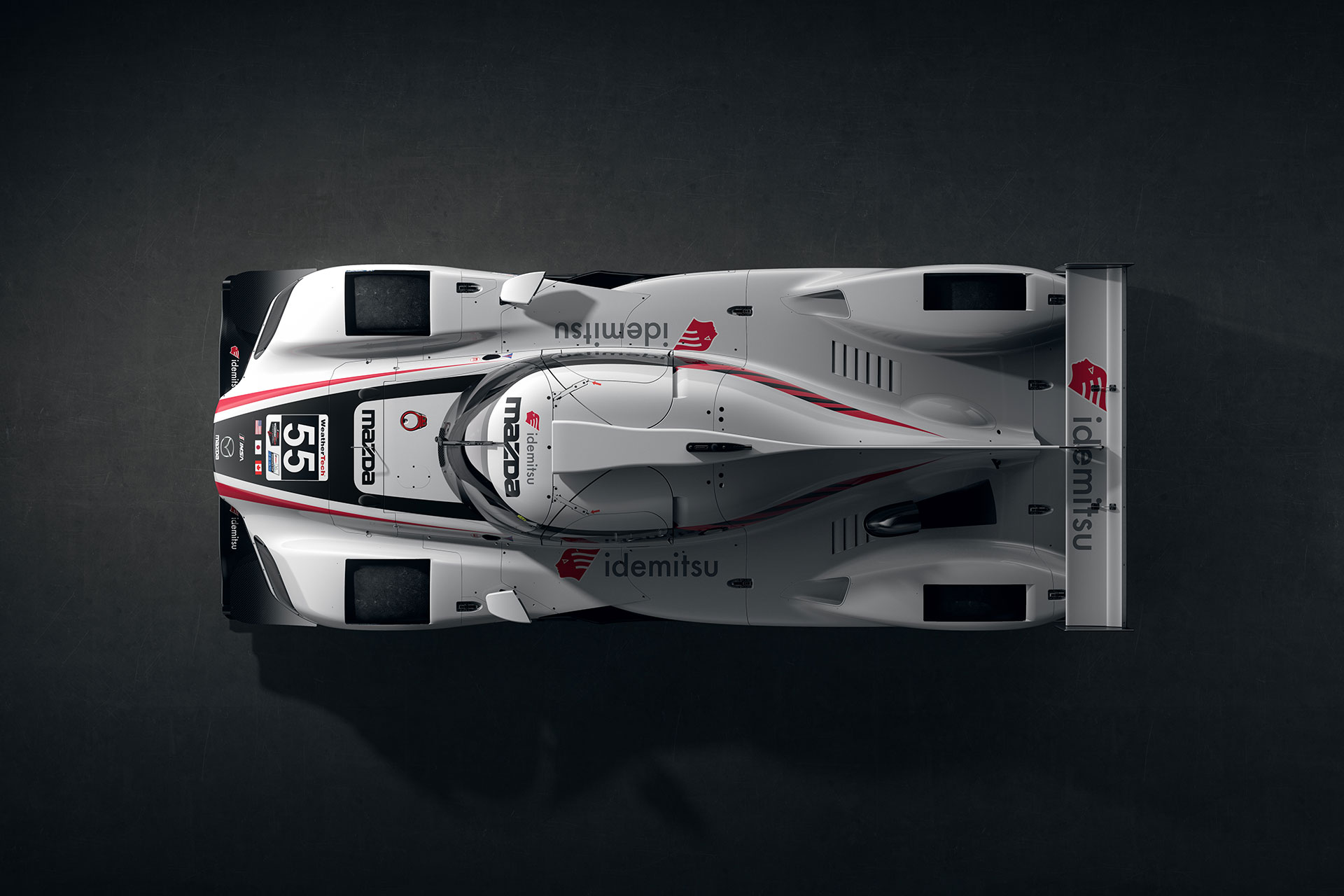

Mazda RT24-P Overview

Multimatic’s winning relationship with Mazda began in 2004 at the inception of the RX8 GT racing era, but the seeds of the Japanese manufacturer’s DPi programme were sown back in 2012 when Multimatic acquired the brand, assets, intellectual property and, most importantly, the technical experts of Lola Cars when the British firm went into administration.

This included the Lola LMP2 project, which Mazda had already committed to. Multimatic then undertook the design and build of the SkyActiv Diesel Lola Mazdas, working with partners such as Xtrac – a strong relationship that continues to this day. After two seasons of racing, the Mazda LMP2 programme shifted to using a 4-cylinder SkyActiv petrol engine, developed by AER, with the installation undertaken by Multimatic.

In 2016 the decision was taken to create a Mazda DPi car in readiness for the 2017 IMSA season. Designed and built by a partnership between Multimatic and Riley Technologies, the RT24 was initially run by Speedsource but it soon became apparent that the car suffered some deficiencies so Multimatic went back to the drawing board, redeveloping the car into the competitive package that exists today. The team became Mazda Team Joest for the start of the 2018 season, with ever-increasing engineering support from Multimatic.

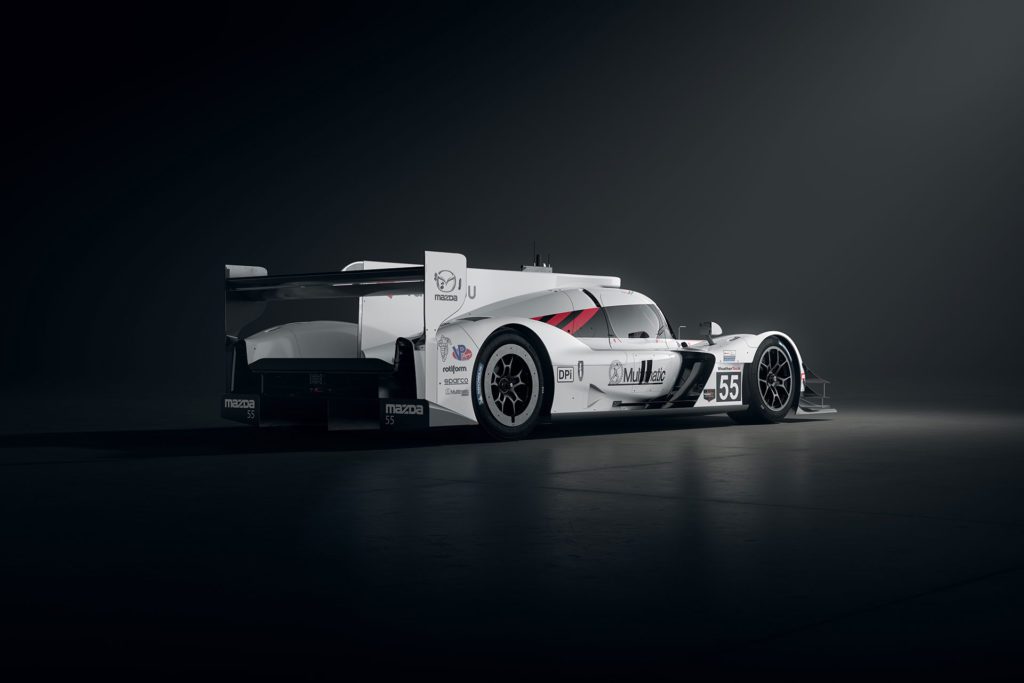

Mazda RT24-P back

In the summer of 2019, the Mazda RT24-P took its first victory. That win at Watkins Glen was followed up with victories at Mosport and Road America, claiming an incredible hat trick that became known as the “Mazda Summer”.

Multimatic took the helm of the entire programme in 2020, just as the Covid-19 pandemic hit. In a time when travel and logistics became incredibly difficult, the team set up a new shop in Mooresville, NC, and steered Mazda to a dominant 1-2 result at the first race back after the global lockdown. They finished the season by taking outright victory at the 12 Hours of Sebring, adding Mazda’s name to the Roll of Honour at one of the world’s toughest race tracks.

The Mazda RT24-P ran in the top class of the IMSA WeatherTech SportsCar Championship from 2017-2021, winning at Petit Le Mans, Sebring, Watkins Glen, Mosport, Road America and Daytona.

Mazda RT24-P Technical Specification

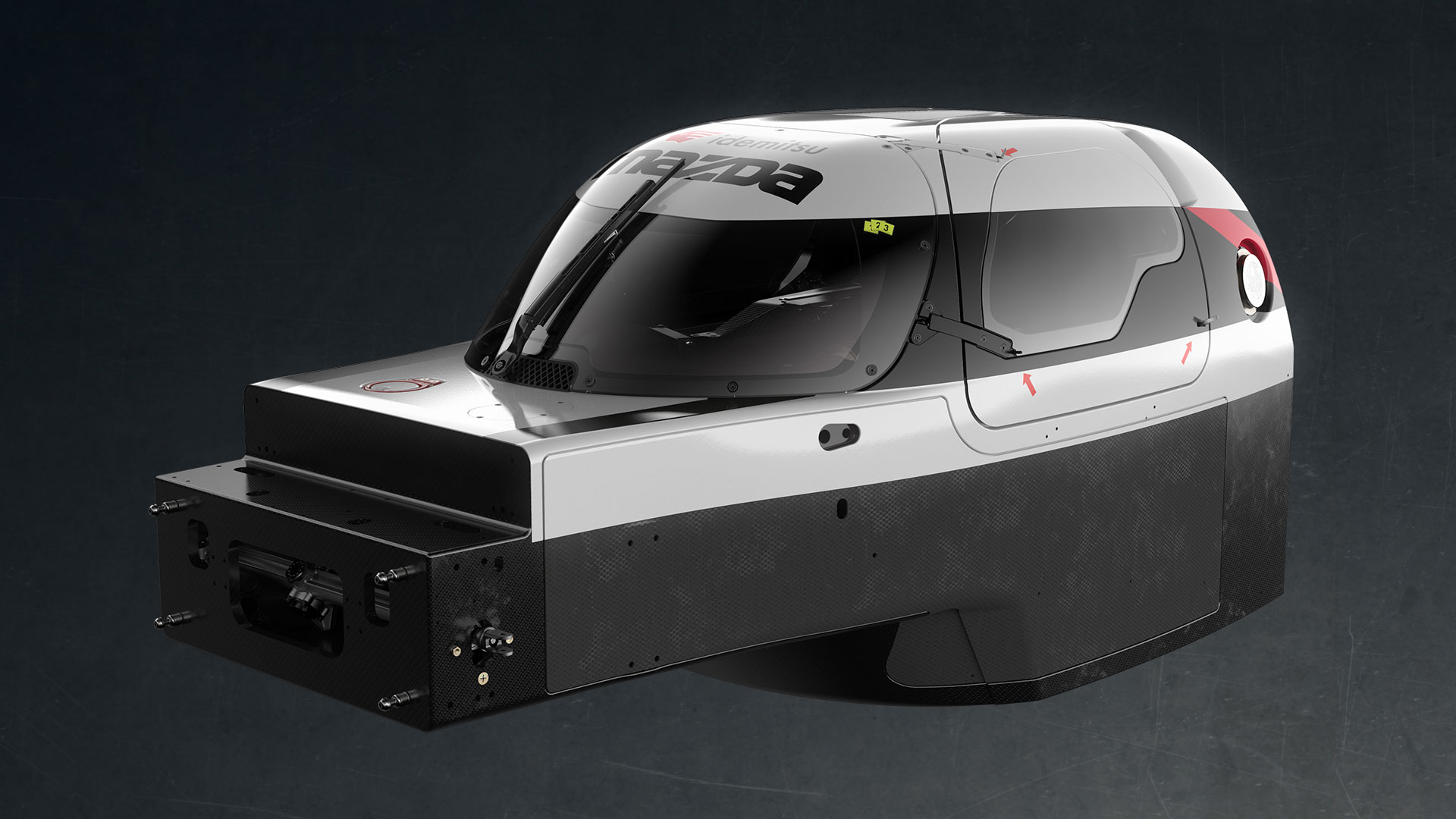

Chassis

Overhead view of Chassis
Lightweight carbon fibre monocoque chassis, designed and built by Multimatic Motorsports
Pneumatic air jack system fitted for fast pit stops

Chassis

Overhead view of Chassis
Lightweight carbon fibre monocoque chassis, designed and built by Multimatic Motorsports
Pneumatic air jack system fitted for fast pit stops

Suspension

Overhead view of Suspension
Double wishbone, pushrod suspension front and rear

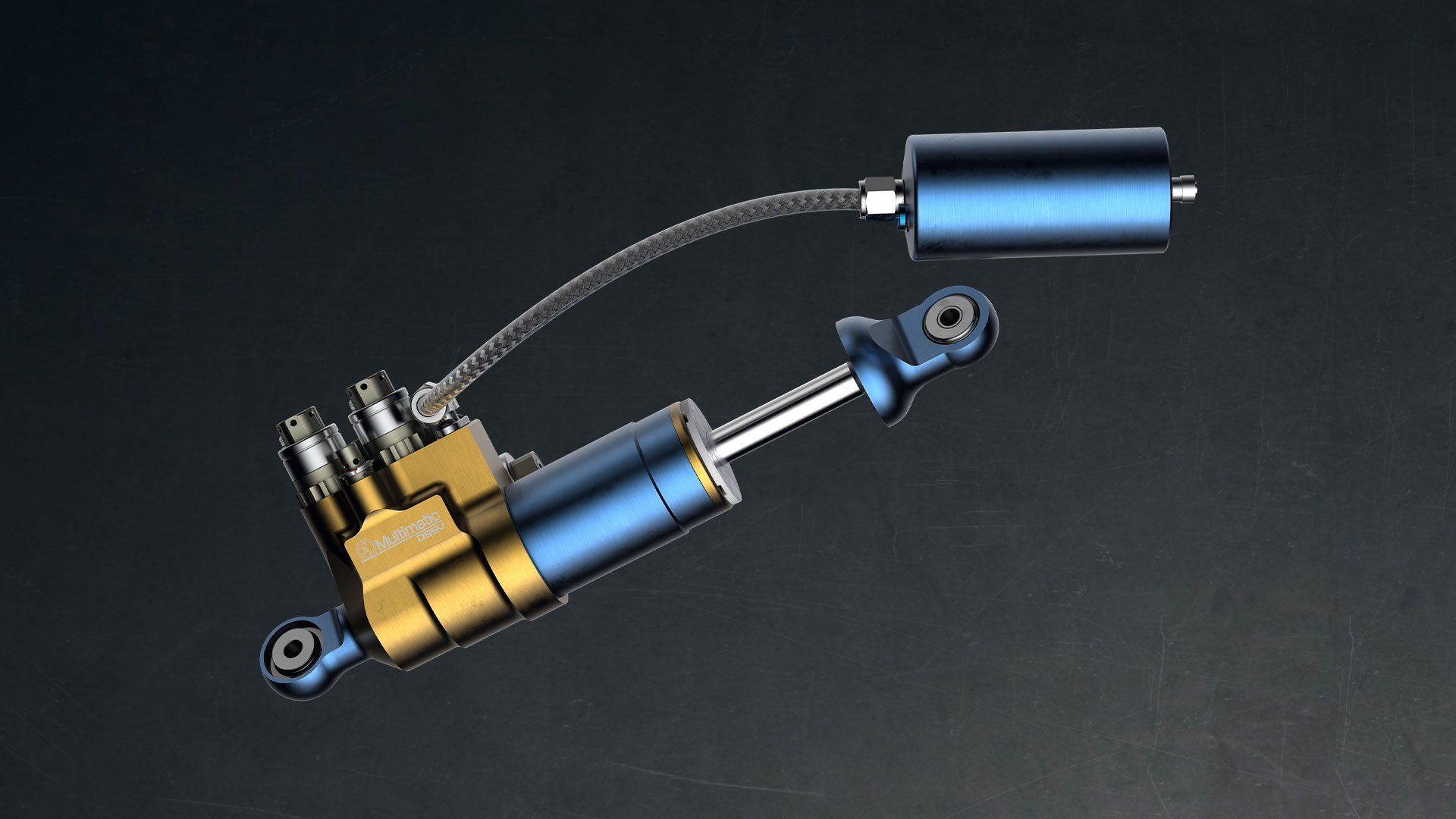

Inboard mounted Multimatic DSSV dampers and coil springs
Driver adjustable anti-roll bar system front and rear

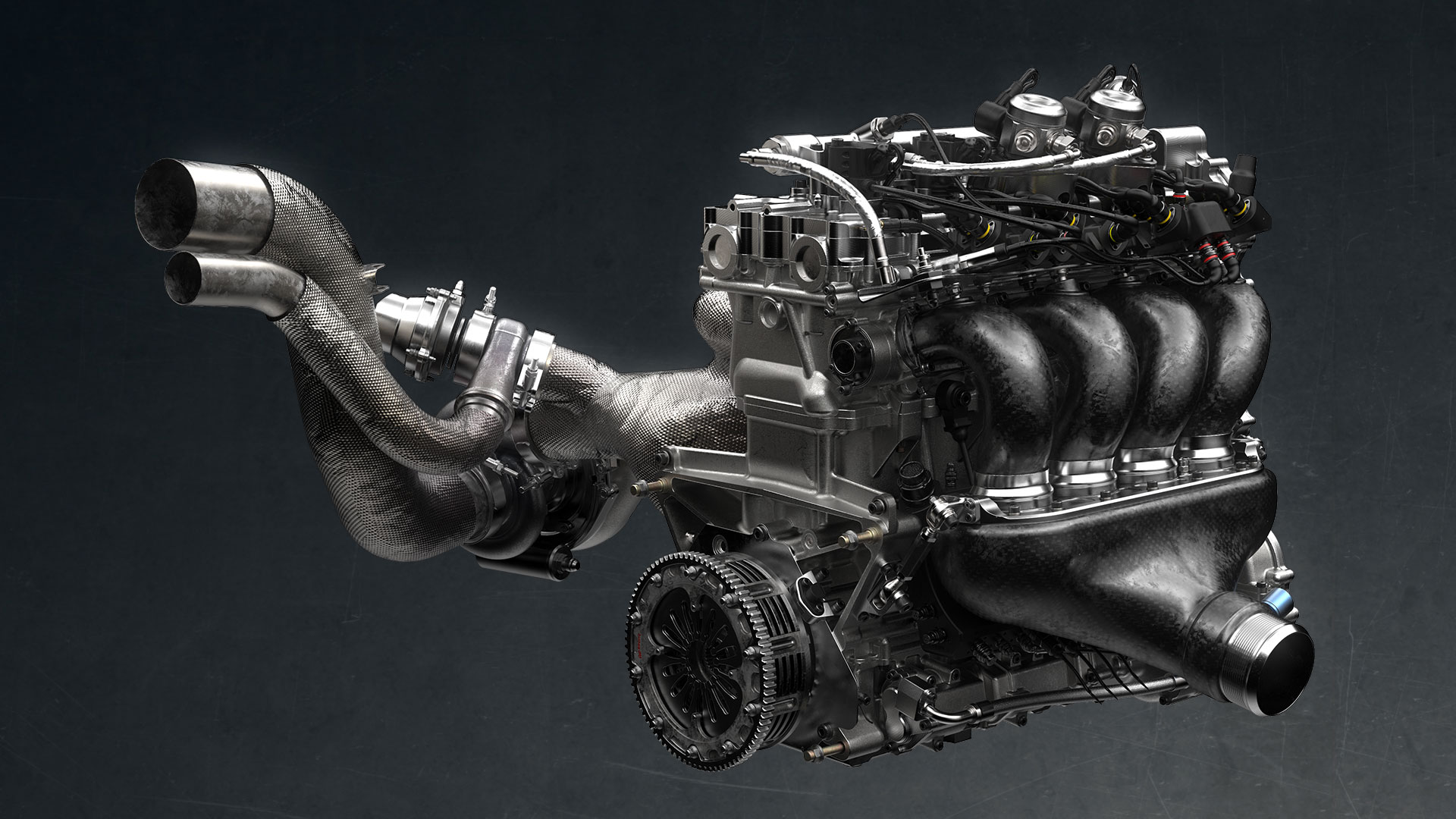

Engine

Overhead view of Engine
Longitudinally mid-mounted, in-line four cylinder, 2.0 litre
Single turbo with air to air intercooling
Dry sump oil system
Power: >600ps

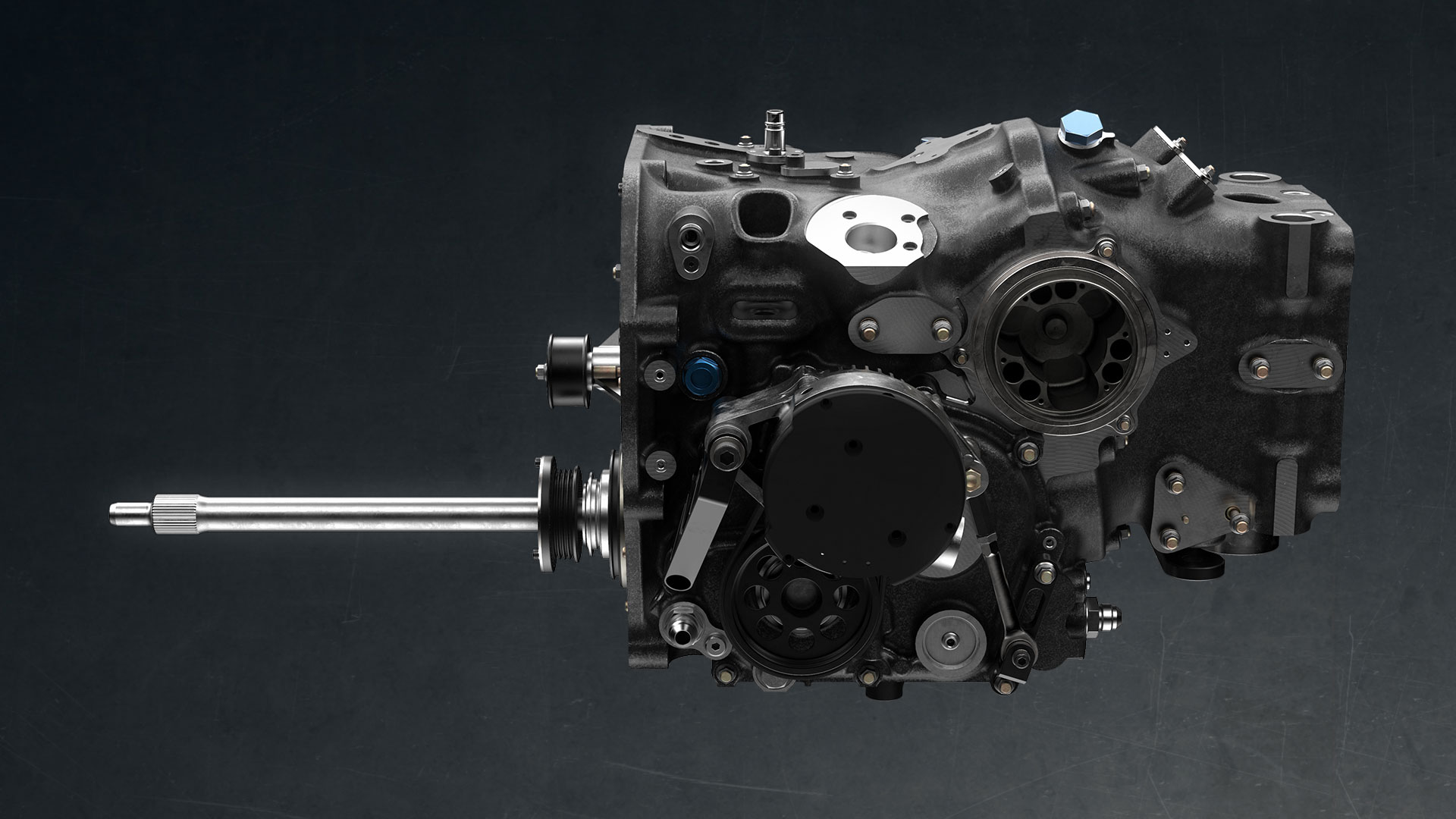

Transmission

Overhead view of Transmission
Rear mounted, transverse cluster, six speed sequential gearbox
Semi-automatic paddle shift
Mechanical, plate and ramp limited slip differential

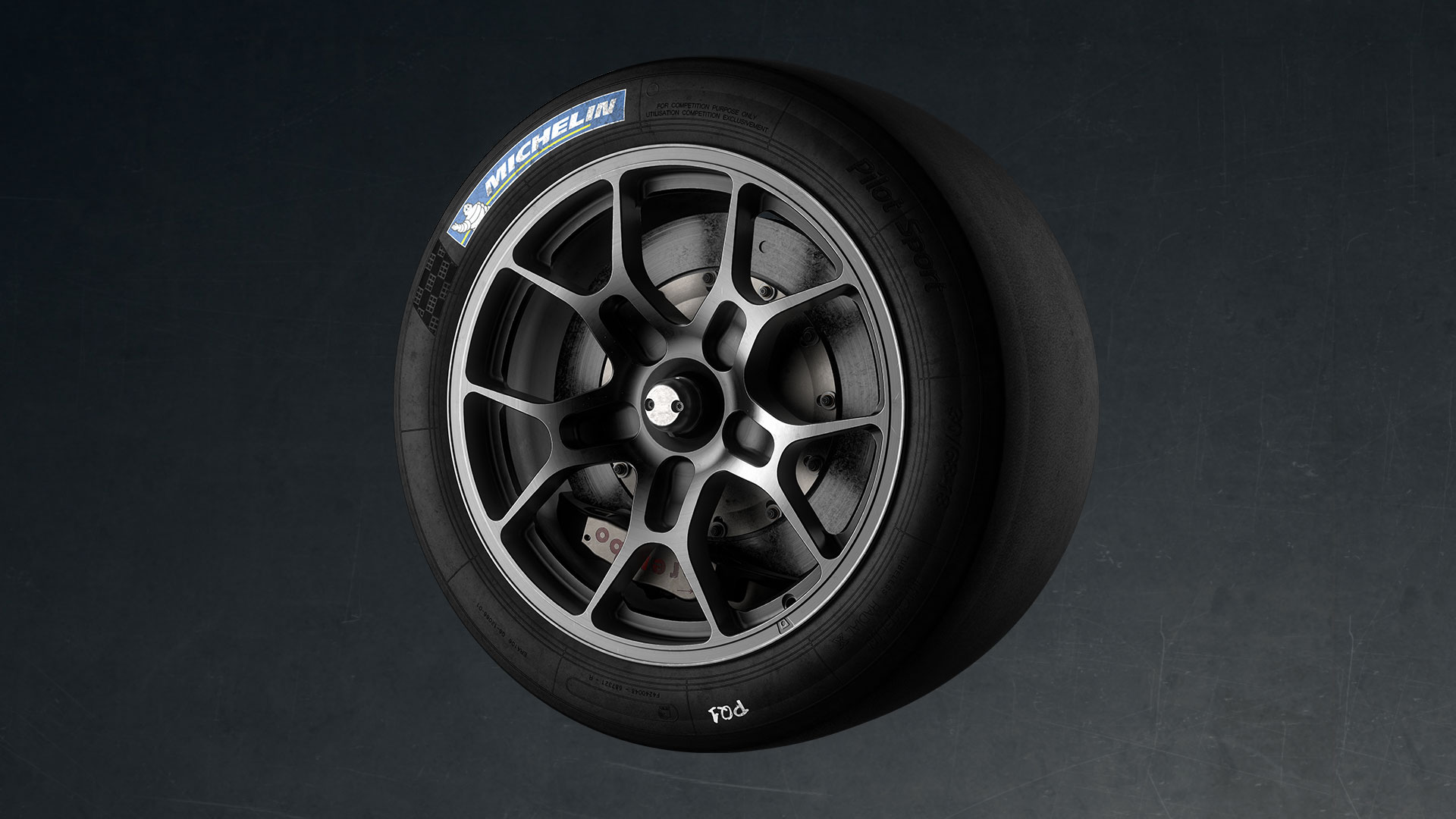

Wheels and Tyres

Overhead view of Aerodynamics
Forged aluminum 18” wheels
30/68-18 Front tyres
31/71-18 Rear tyres

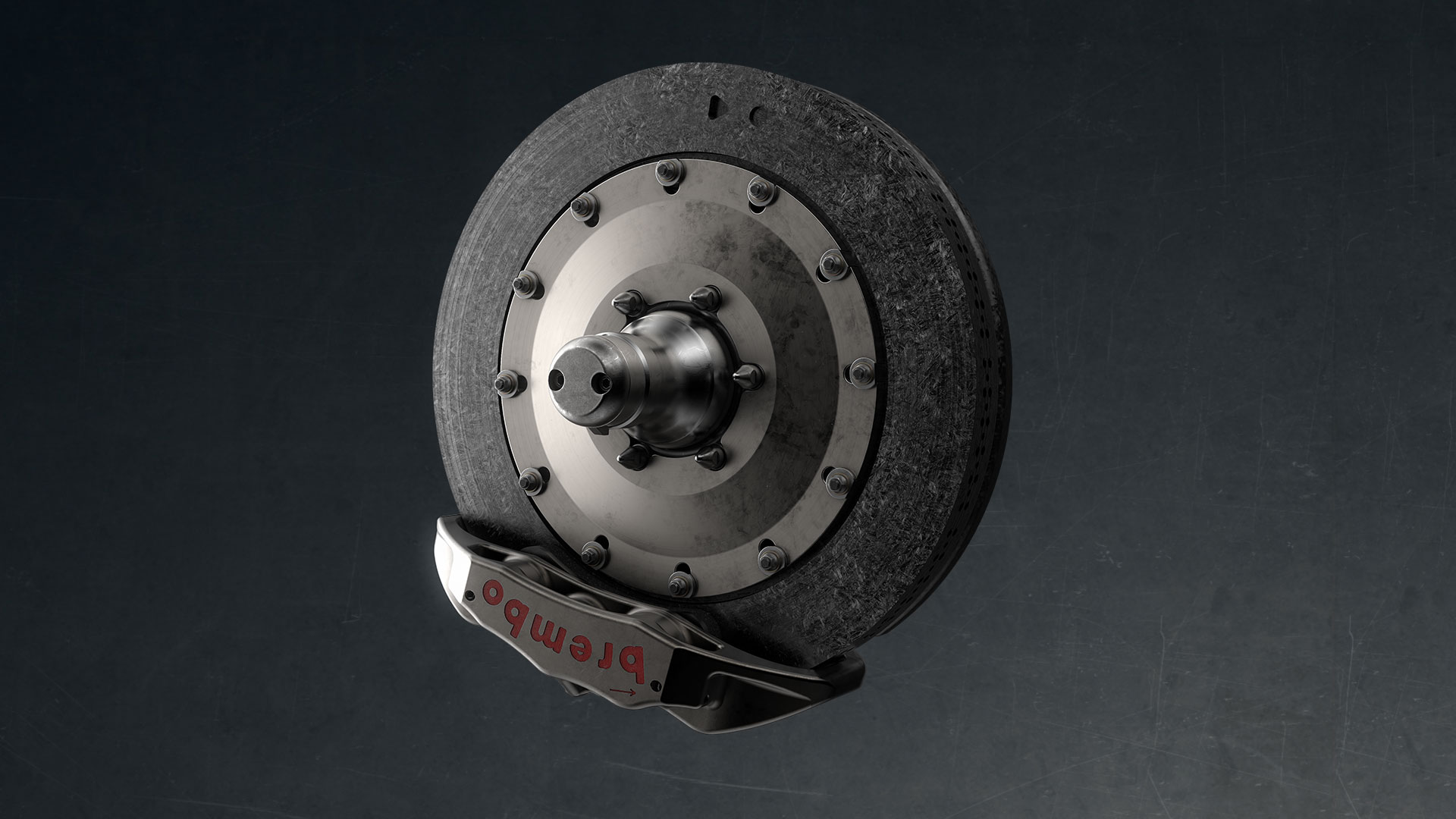

Brakes

Overhead view of Aerodynamics
Six piston calipers front and rear
380mm Ventilated carbon ceramic front discs
355mm Ventilated carbon ceramic rear discs
